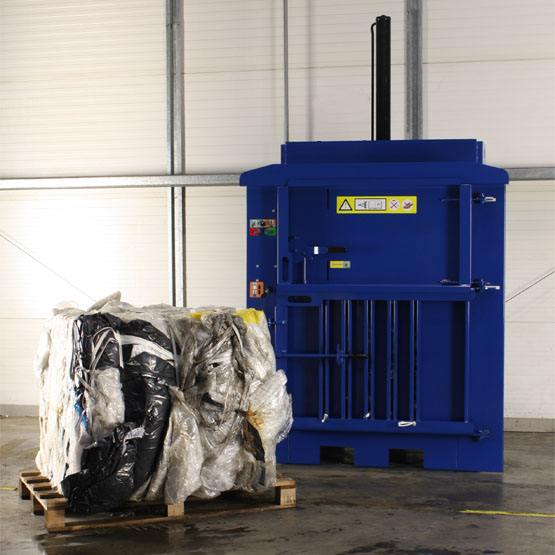

Compact 150

Baler Features

  • A mid range baler with easy loading for large size carbboard boxes.
  • Retaining Claws to reduce spring back of material in the baler chamber.
  • Fully automated bale ejector: simplifies removal of bal.

Optional Extras

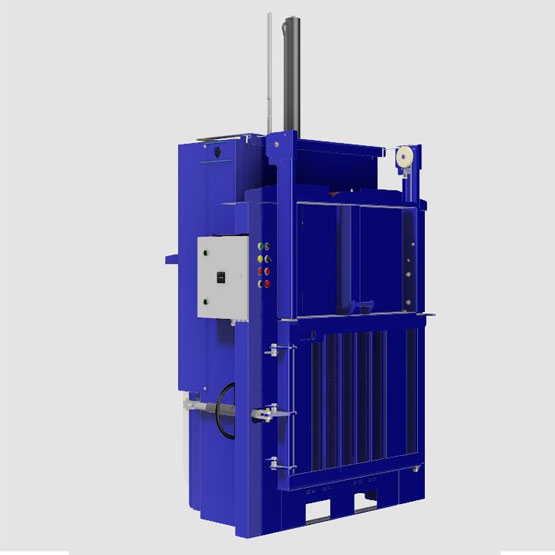

  • PLC Panel with Automatic compaction Cycles and Bale full light.
  • Sliding top door for easy loading of material.

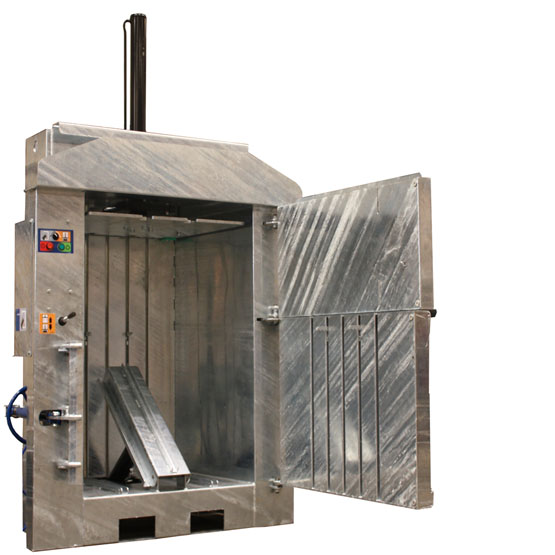

  • Galvanised Finish.
  • Available in 380/400 Volt power supply.
BALER DIMENSIONS BALE DIMENSIONS
Height: 2.600 m Height: 1.000 m
Width: 1.560m Width: 0.975 m
Depth: 1.030 m Depth: 0.800 m
Weight: 780 kg Weight: up to 150 kg
Transportation Ht: 1.955 m Cycle Times: 40 seconds
Power Supply: 220 – 240 Volt 1 phase LOADING APERTURE SIZES
Motor: 2.2 kW 13 Amp Height: 0.470 m
Pressing Force: up to 8.0 Ton Width: 0.975 m
Noise Level: 72 decibels Depth: 0.800 m
