Balers

Compact 450

Baler Features

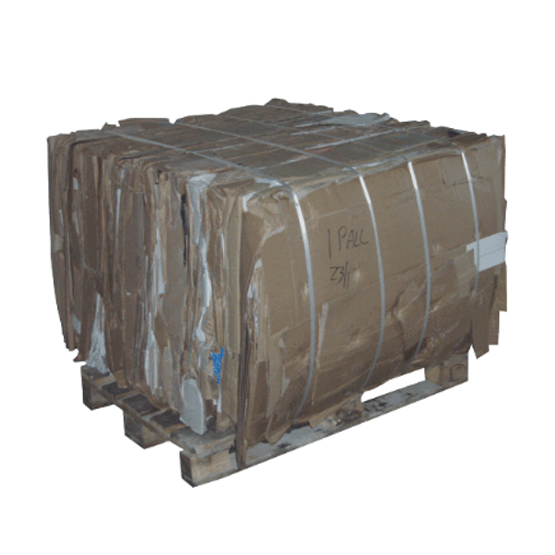

  • Produces a mill size bale.
  • Retaining Claws to reduce spring back.
  • Large loading aperture for easy loading of cardboard boxes into the baler.

Optional Extras

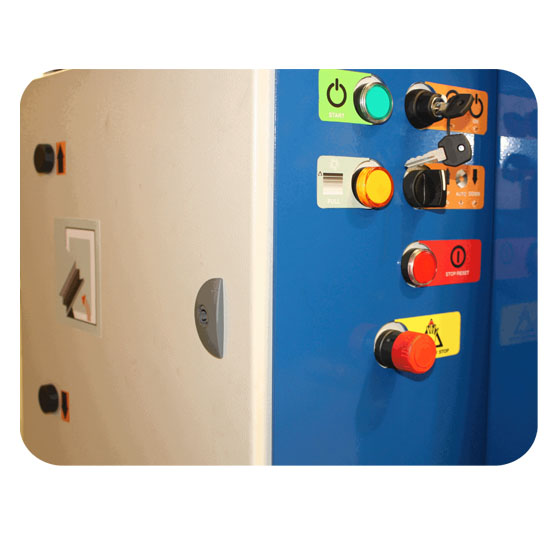

  • PLC Panel with Automatic compaction Cycles and Bale full light.

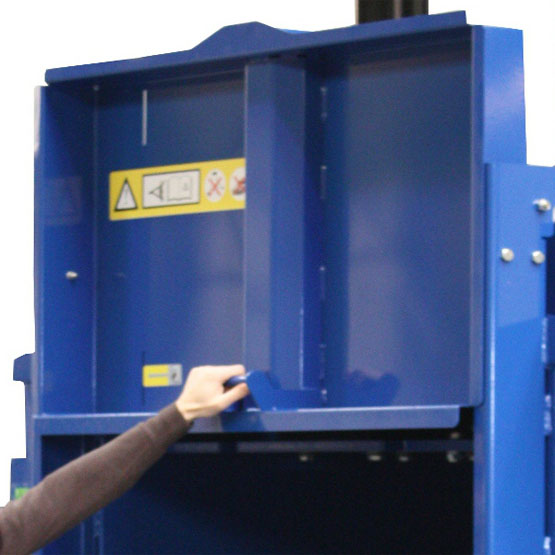

  • Sliding top door for easy loading of material.
  • Available with 220 – 240 volt single phase power supply.
BALER DIMENSIONS BALE DIMENSIONS
Height: 3.000 m Height: 1.000 m
Width: 1.781 m Width: 1.200 m
Depth: 1.196 m Depth: 0.800 m
Weight: 1300 kg Weight: 450 kg (depending on material used)
Transportation Ht: 2.3 m Cycle Times: 50 seconds
Power Supply: 380 – 400 Volt 3 phase LOADING APERTURE SIZES
Motor: 11 kW 32 Amp Height: 0.680m
Pressing Force: up to 30 Ton Width: 1.2 m
Noise Level: 72 decibels

Depth: 0.80 m
