Horizontal Balers
HZ50T Horizontal Baler
Baler Features

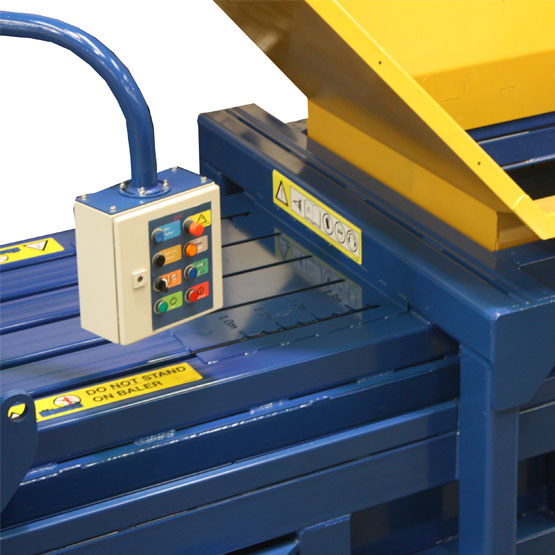

- PLC controls offers safe and easy operation.
- Removable top and bottom shear blades.
- Lower photo eye for Automatic start /stop.
- 6 Oil filled cast Nylon slide for plunger guides.
- Full stroke compaction.
- Automatic shear jam correction.
- Hydraulic door latch with safety interlock.
- Left & right door swing.
Optional Extras
- Feed conveyer for loading material
- Bin lifter with safety cage for Loading material .

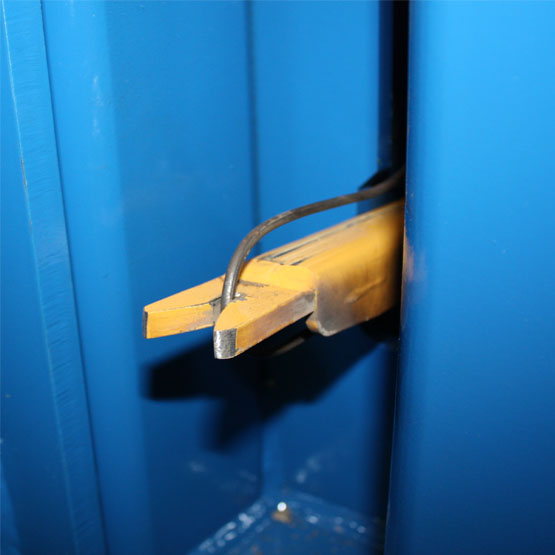

- Wire pushing system for faster and easier tying off of bales.
| BALER DIMENSIONS | BALE DIMENSIONS |
|---|---|
| Height: 2.320m | Height: 0.750 m |
| Length: 7.000m | Length: 1.500m |
| Depth: 1.782 m | Depth: 1.100 m |
| Weight: 7.5T | Weight: up to 550kg |
| Power Supply: 380–400V (3phase) | Cycle times: 50 seconds |
| LOADING APERTURE SIZES | |
| Motor:11kw & 2.2kw Pressing | Width: 1.200 m |
| Pressing force 50 Ton | Depth: 1.009 m |
